Slide Switch Top Push Type MS-23C02

    Slide Switch Top Push Type MS-23C02

  • Category:
    Top Push Type
  • Browse number:
    396
  • Release time:
    2026-06-08 10:21:08
  • Share:
  • INQUIRY
Detailed Description

列表.png Thin type 2.0mm in height

列表.png Some models are available for reflow-soldering

Product Applications

列表.png Function and band selector switches for headphone stereo sets, lquid-crystal TV sets, car radios, camera VCRs, MP3, memory cards, etc.

Specifications Diagram
ItemsStandard
Operating temperature range-40℃ to +80℃
Electrical performanceRating100mA, 12V DC
Insulation resistance100MΩ min. 250V DC
Dielectric strength250V AC for 1 min.
Contact resistance100mΩ max.
DurabilityLifetime5,000-10,000 Cycles
Mechanical performanceActuating Force180 ± 80 gf
Travel3 level x 1.5

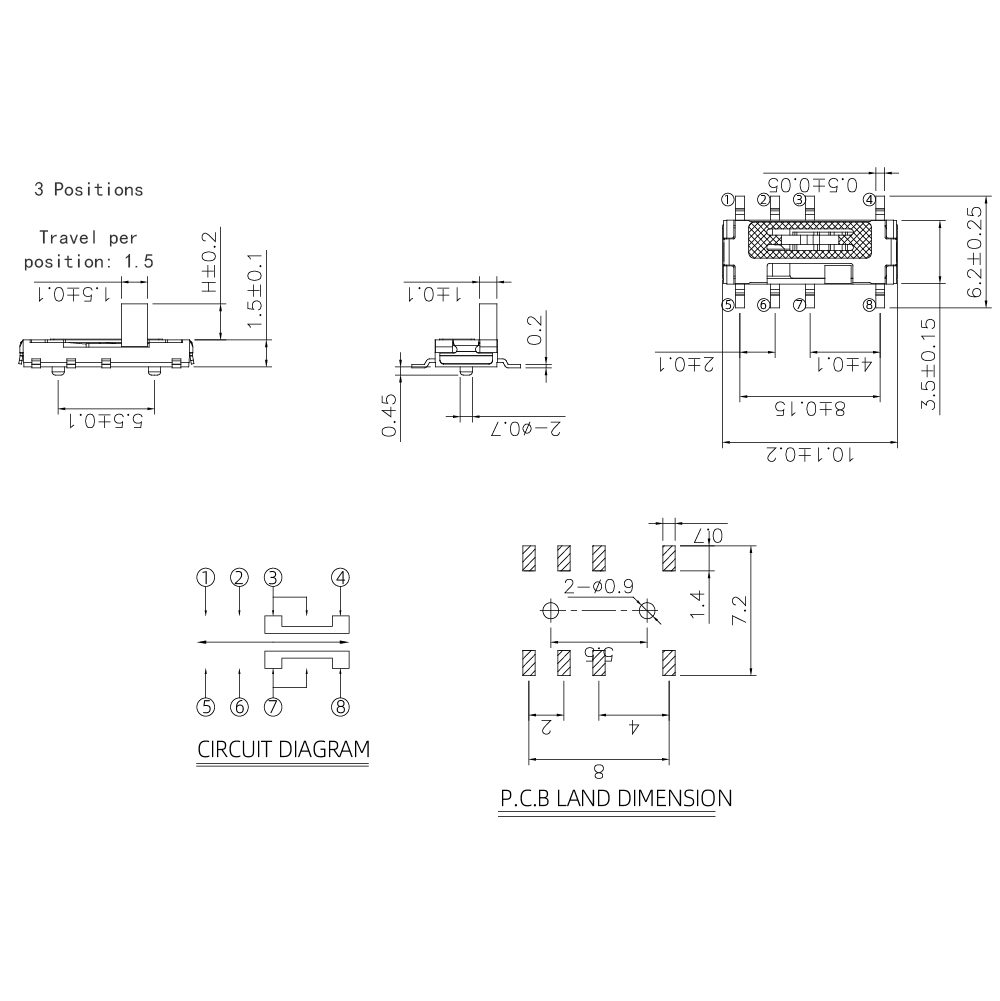

Connection diagram

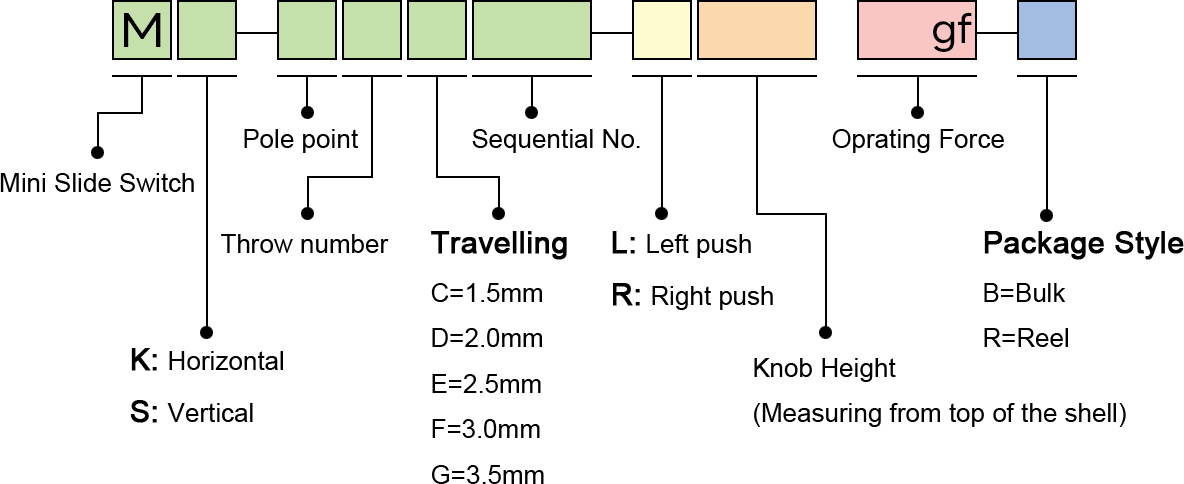

Ordering Information
