The Rocker Switch KCD3 Series KCD3-C5 is a high-performance, panel-mount power switch that combines durability, efficiency, and ergonomic operation. This model is part of the KCD3 family, known for its rugged construction and suitability in both commercial and industrial environments. With a rated current of 16A at 250VAC and an endurance of 10,000 switching cycles, the KCD3-C5 is designed to provide reliable, long-term functionality across a wide range of demanding applications.
The KCD3-C5 rocker switch is engineered for environments where stable electrical connectivity and user-friendly control are critical. Designed with safety, practicality, and performance in mind, this switch is capable of withstanding high currents and voltage levels while offering tactile responsiveness and dependable switching action.
The rocker-style actuator enables intuitive operation, making it easy to switch devices on or off without requiring visual confirmation. Built to meet rigorous quality and environmental standards, the KCD3-C5 is also resistant to temperature fluctuations and solid particle ingress, making it well-suited for both consumer and professional-grade equipment.

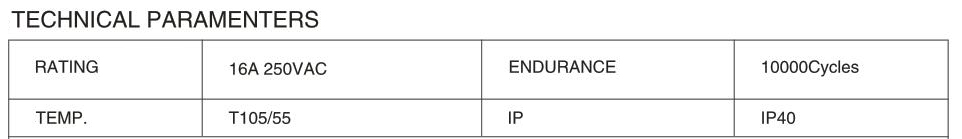

Electrical Rating and Performance
The KCD3-C5 is rated at 16A 250VAC, making it ideal for switching circuits with high current demands. This allows the switch to control a wide range of devices, from industrial machinery to household appliances, without electrical performance degradation. The switch’s electrical endurance of 10,000 cycles ensures that it remains reliable even under heavy use.
Temperature Resistance
With a thermal tolerance rated at T105/55, this switch can operate effectively in environments with ambient temperatures up to 105°C. This high thermal resistance makes the switch suitable for installations near heat-generating components such as motors, heaters, and industrial control panels.
Protection Rating
The IP40 ingress protection rating indicates that the switch is protected against the ingress of solid objects larger than 1 mm, such as tools and small wires. Although it does not offer protection against water, the switch’s robust housing provides ample resistance to dust and similar environmental elements found in indoor applications.
Durability and Material Quality
The KCD3-C5 is designed for longevity, featuring durable internal contacts and housing materials that resist wear and electrical arcing. The switch operates with a satisfying tactile response, providing both sound and feedback during actuation. This mechanical quality supports consistent user operation and minimizes the risk of misoperation.
Mounting and Installation
The switch is designed for panel-mount installation and is compatible with standard cutout dimensions. It is secured via snap-fit or screw-lock mechanisms, ensuring a tight fit and stable positioning even in equipment subjected to vibration or handling.
The versatility and electrical capacity of the KCD3-C5 make it an excellent choice for a wide variety of application environments. Below are some of the most common use cases:
In industrial automation and control systems, reliable switchgear is essential. The KCD3-C5 can control motors, lights, relays, and other high-current devices within machinery and panel systems. Its high current rating and thermal resistance allow it to function within control cabinets where heat and load fluctuations are common.
This switch is commonly found in small and large household appliances, such as electric heaters, coffee makers, vacuum cleaners, and power tools. It provides users with a dependable interface for safely activating or deactivating devices.
Heating, ventilation, and air conditioning units benefit from the KCD3-C5’s durability and current handling. Whether used for powering fan motors, compressor circuits, or heating elements, the switch performs reliably under fluctuating load conditions.
In vehicles and marine applications, where switches are used for lighting, accessory control, and auxiliary functions, the KCD3-C5 offers reliable switching as long as it is installed within protected enclosures due to its IP40 rating.
Photocopiers, printers, vending machines, and other business machines require reliable power switching. The KCD3-C5 ensures efficient, long-term operation without electrical faults, making it a preferred solution for such equipment.
In lab settings, instruments and test devices often require manual control interfaces. The KCD3-C5 delivers tactile switching, high reliability, and heat tolerance, which are particularly valuable when integrated into precision equipment.
To ensure optimal performance, the KCD3-C5 should be installed according to recommended practices:
Panel Fitment: Ensure that the panel cutout matches the dimensions of the switch for a secure fit. Improper installation can lead to instability and switch failure.
Wiring: Use appropriate gauge wires and secure terminal connectors rated for the switch's 16A 250VAC rating. Avoid loose connections that can result in arcing or heat buildup.
Environmental Control: While suitable for dusty environments, the switch should not be exposed to moisture. Use protective covers or housings if used in humid or wet conditions.
Orientation: The switch can be mounted vertically or horizontally. However, ensure proper labeling to indicate ON/OFF positions clearly, especially in safety-critical applications.
Q: Can the KCD3-C5 be used in outdoor applications?
A: The switch has an IP40 rating and is not waterproof. It can be used outdoors only if enclosed within a waterproof housing or panel that protects it from rain and moisture.
Q: Is the switch suitable for switching inductive loads such as motors or transformers?
A: Yes, its 16A rating supports inductive loads. However, it is important to consider inrush currents and use protective measures such as snubber circuits if necessary.
Q: How can I tell if the switch is ON or OFF?
A: The rocker mechanism provides tactile feedback and may include a marked “I” for ON and “O” for OFF. The actuator position itself typically indicates the current state.
Q: Can the switch be illuminated?
A: While this depends on the specific model configuration, some variants of the KCD3 series may support illumination. This helps indicate power status in low-light environments.
Q: How often should the switch be replaced?
A: With an endurance rating of 10,000 cycles, the switch can last several years under regular usage. Replacement should only be necessary if you observe signs of failure such as intermittent operation, loss of actuation feedback, or overheating.
Q: Can I use this switch for DC circuits?
A: While primarily rated for AC use, it may function in DC circuits with derated load values. Consult with the manufacturer or refer to detailed product datasheets to determine appropriate use in DC applications.
Q: Is it necessary to use a relay with this switch?
A: For high-power or inductive loads, pairing the switch with a relay or contactor can help extend the switch’s life by isolating high inrush currents from the manual switch interface.
Q: What standards or certifications does the switch meet?
A: Depending on the manufacturer, the switch may meet various international electrical standards such as UL, CE, or CCC. These certifications ensure safety and reliability under prescribed conditions.
The KCD3-C5 distinguishes itself from other similar switches through a variety of performance and design advantages:
High Load Handling: It can safely control devices operating at 16A 250VAC, a capacity suitable for many mid- to high-range applications.
Thermal Tolerance: Rated up to T105, the switch can operate in high-heat conditions where standard switches would degrade.
Longevity: A 10,000-cycle electrical life ensures dependable long-term service with minimal maintenance.
Simple Operation: The rocker mechanism is intuitive and fast, improving user experience.
Secure Mounting: The panel-mount design ensures mechanical stability and safety during operation.
Design Versatility: Its compatibility with various equipment styles and enclosure types makes it a versatile solution for designers and engineers.
The KCD3-C5 rocker switch offers a high-performance and reliable switching solution for a broad range of applications across industries. Designed to operate at up to 16A 250VAC with an extended thermal rating of T105, the switch is well-suited to control systems, appliances, machinery, and more. With a mechanical design that ensures ease of use, and a durable construction that provides long life even under demanding conditions, the KCD3-C5 is a practical and efficient choice for electrical control applications.
Properly installed and maintained, this switch contributes to both the safety and functionality of the systems in which it is deployed. Its proven reliability and universal design allow it to meet the diverse requirements of engineers, manufacturers, and end users alike.
