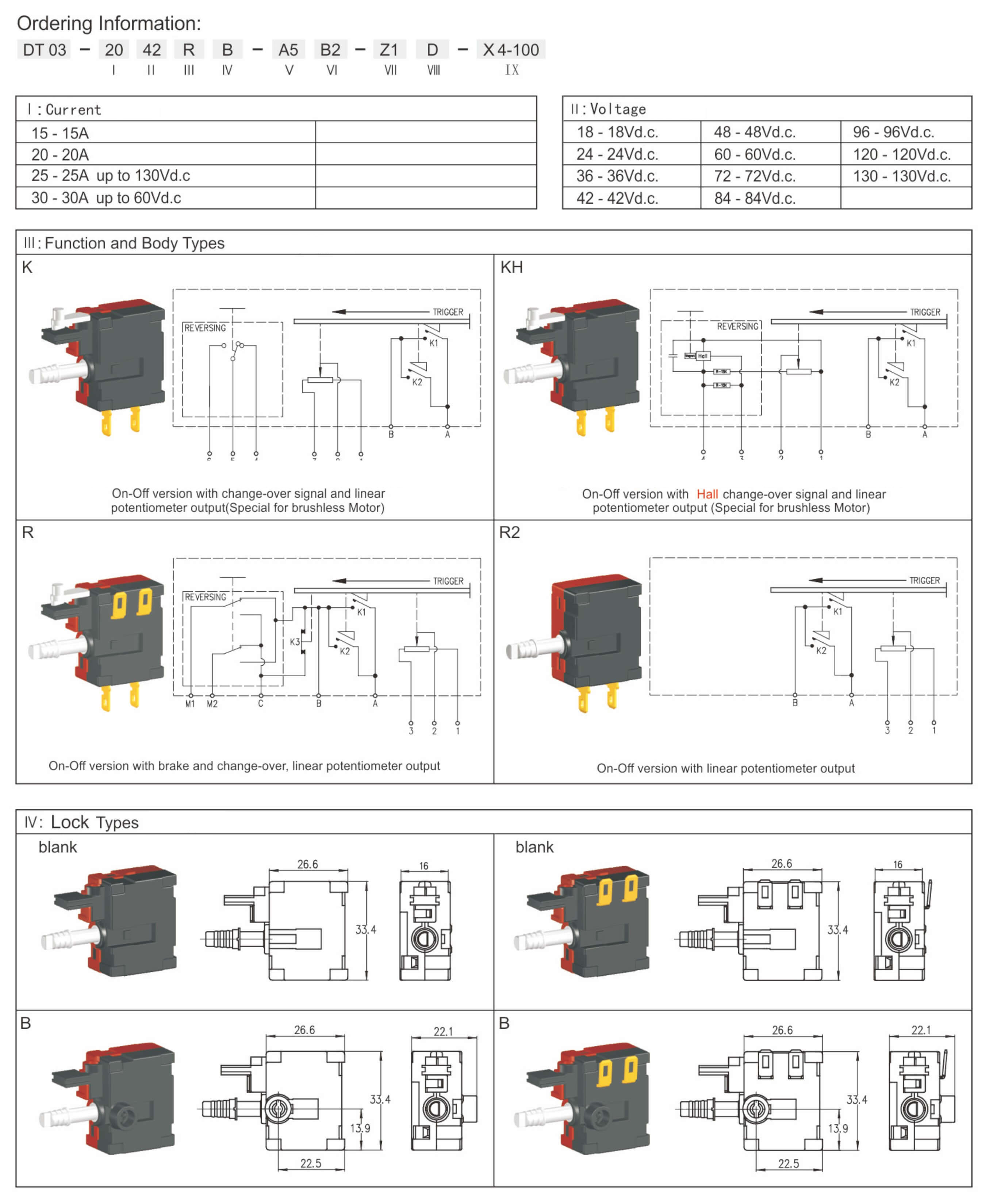

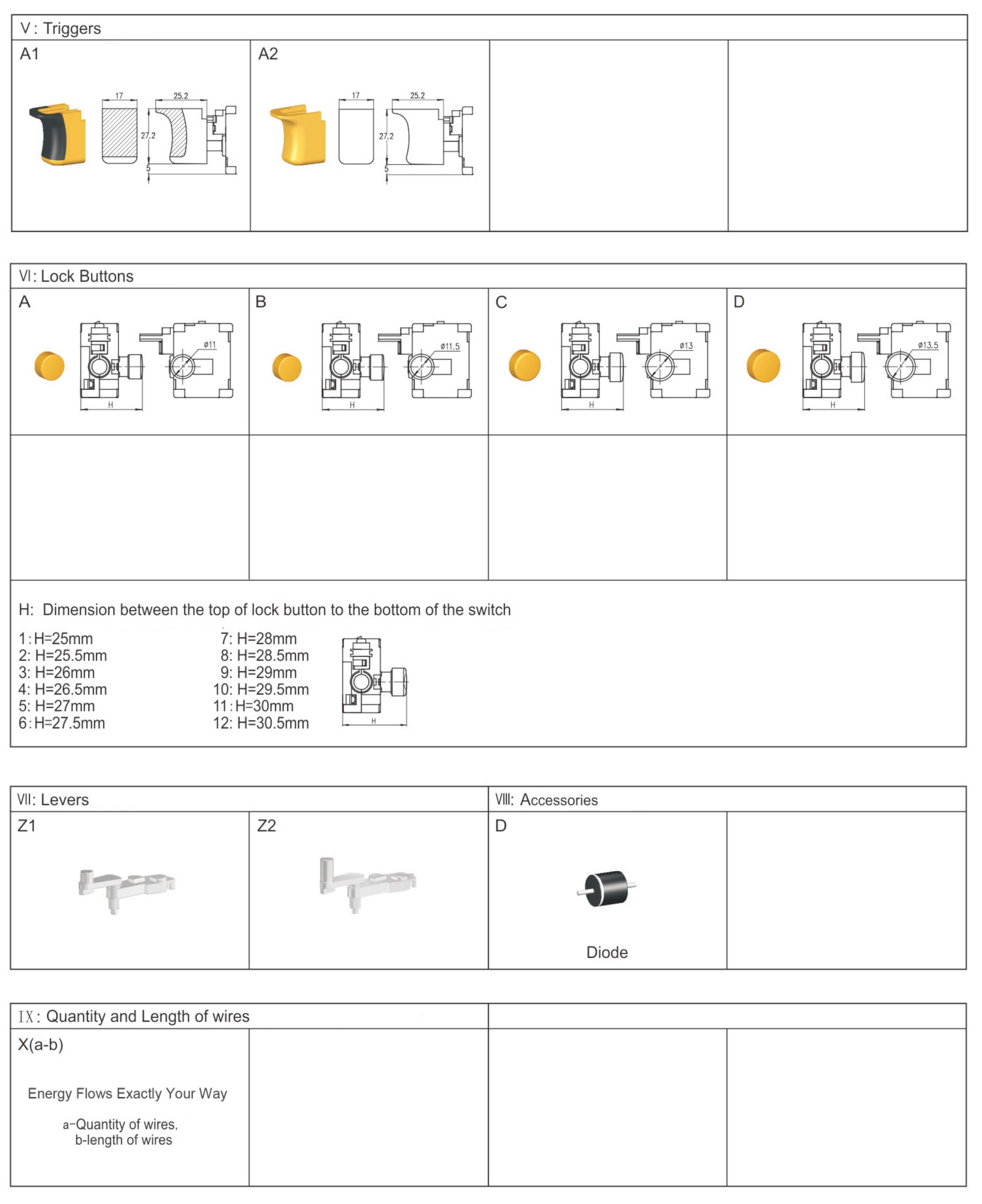

◆  Optional with the function or accessor as follows:

→  On-off with linear potentiometer ouput

→  On-off with Reversing signal indication and linear potentiometer ouput (Special for DC brushless applications)

→  On-off with Reversing hall signal and linear potentiometer ouput (Special for DC brushless applications)

→  Optional with Lock-on button

→  Trigger coverde with rubber (overmolding)

◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

◆  Input side/Output side:

→  Solder terminal 4.7×0.8mm

→  Wire with tin conductor

◆  Potentiometer Output :

→  Wire with tin conductor

→  Wire Terminal with Plug

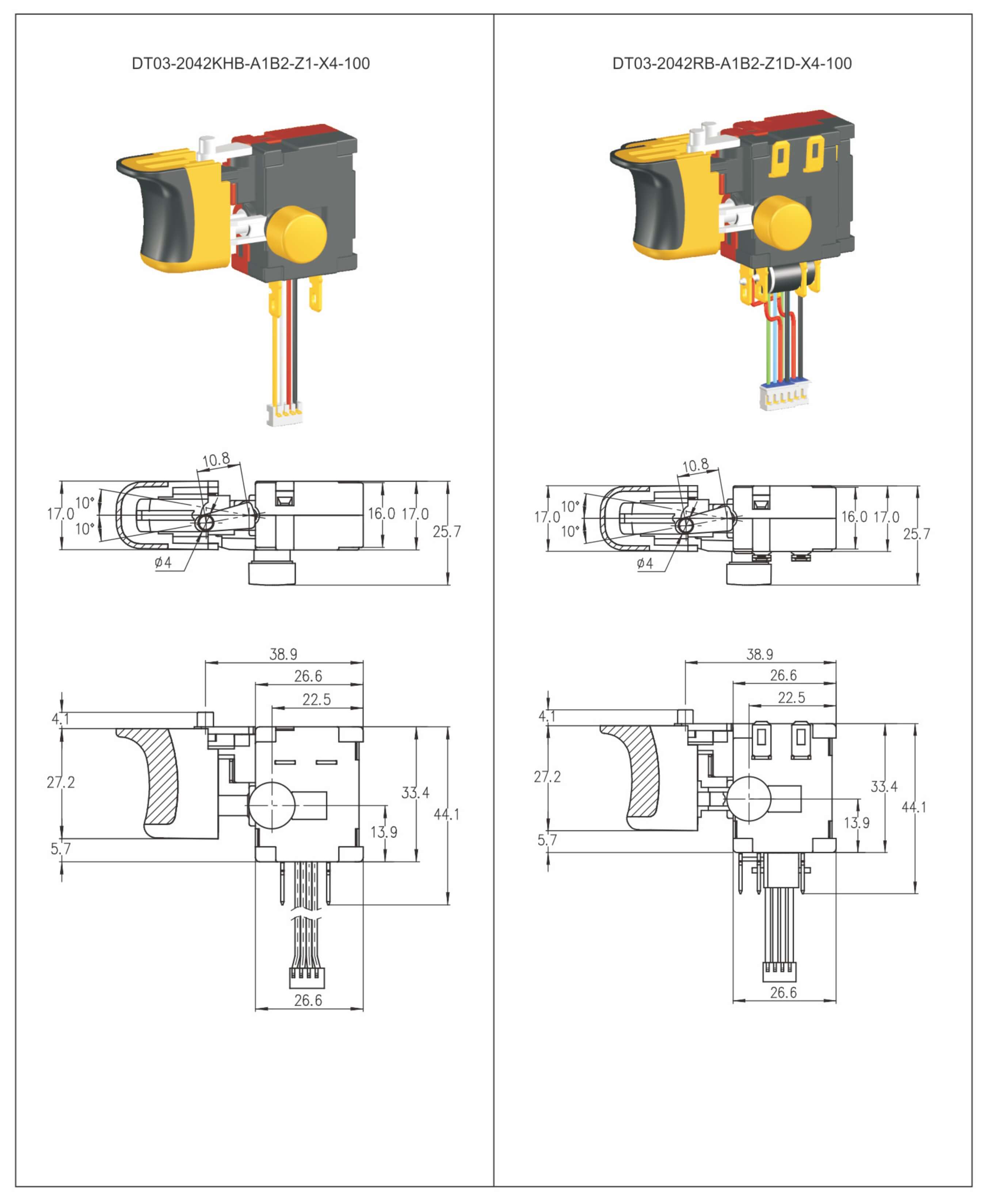

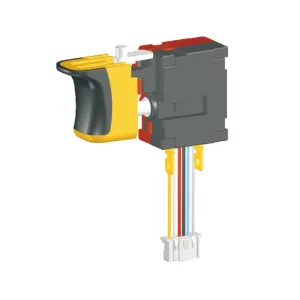

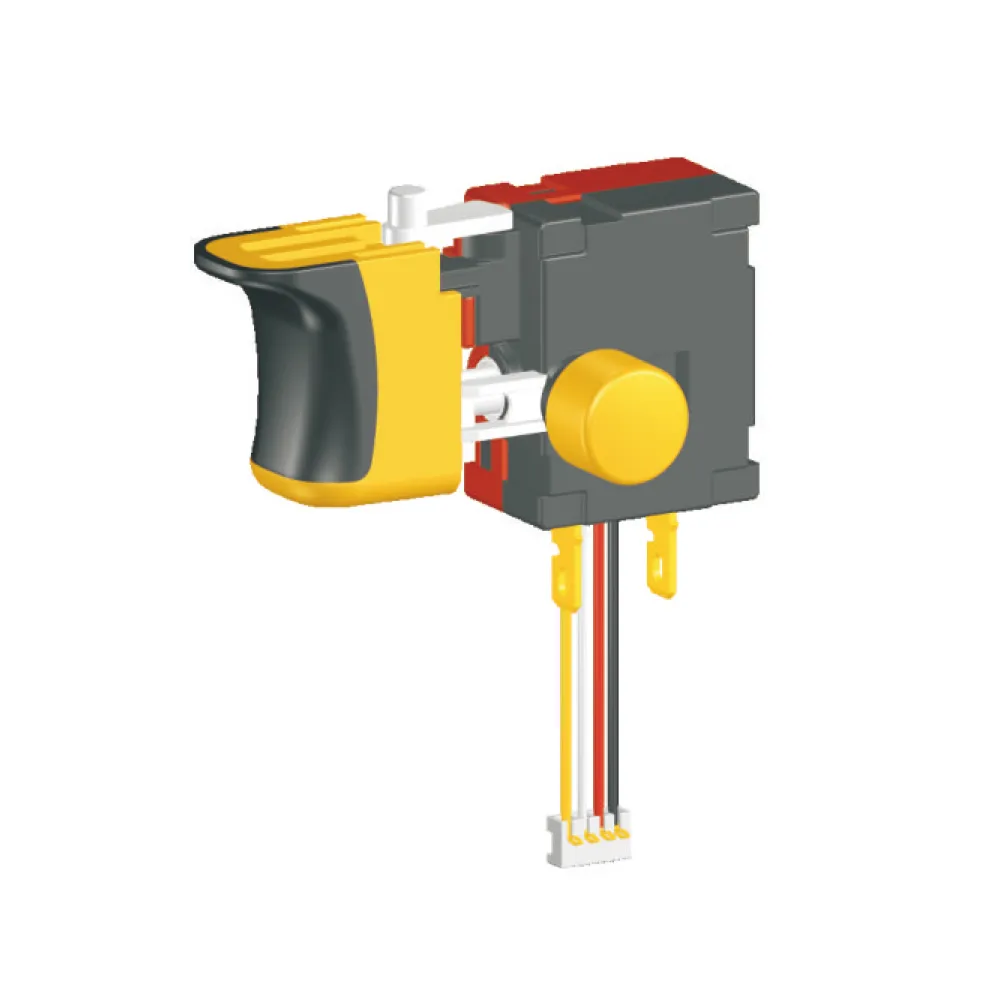

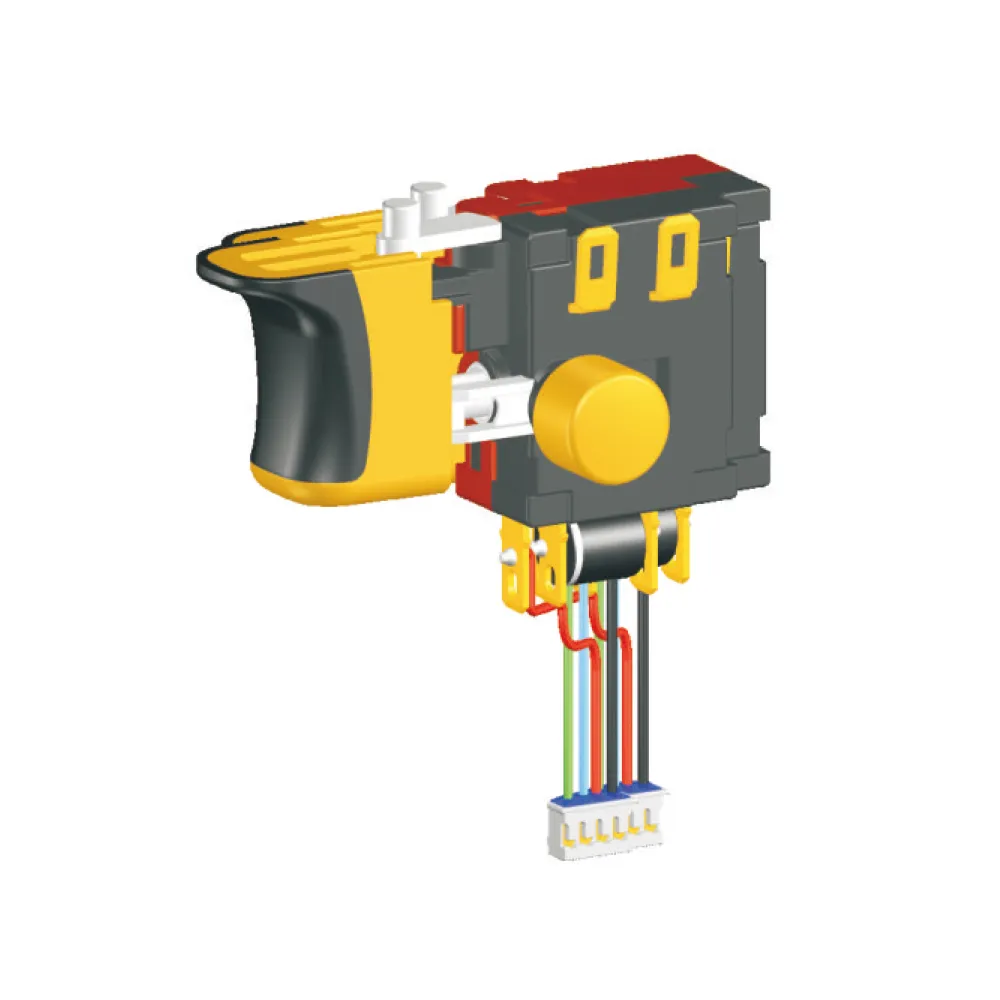

DT03 Series Power Tool Switch: Advanced All-in-One DC Trigger Switch with Dustproofing, Braking, and Reversing Box for Cordless Power Tools

Product Overview

The DT03 Series is an advanced DC trigger switch designed specifically for cordless power tools. It integrates dustproof sealing, a mechanical brake contact, and a built-in reversing box, offering a compact yet powerful solution tailored for high-performance portable electric tools. This series is widely applied in tools such as cordless drills, cordless screwdrivers, rotary hammers, and impact wrenches—particularly those operating on brushed or brushless DC motor systems.

As demand grows for portable power tools that are compact, safe, and intelligent, the DT03 responds with a multifunctional design that reduces system complexity while ensuring durability, reliability, and enhanced user control. Whether for industrial, DIY, or garden applications, the DT03 enables toolmakers to meet modern expectations for ergonomics, longevity, and performance.

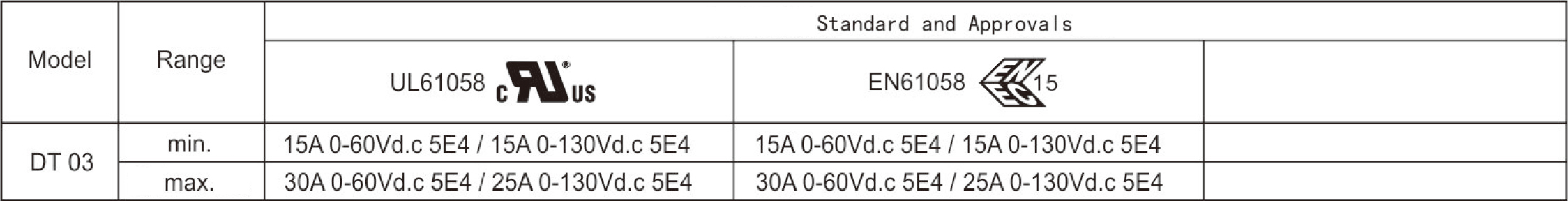

Technical Specifications

Product Features

1. Integrated Mechanical Brake Contact

The DT03 switch includes a robust braking system that activates immediately after the trigger is released. This results in:

• Instantaneous motor stop

• Enhanced safety for users

• More precise control, especially for rotary or high-speed tools

In applications such as cordless rotary hammers or impact wrenches, quick braking ensures accuracy and reduces injury risk or material damage from tool overrun.

2. Built-in Reversing Box

Unlike standard trigger switches that require external circuitry for motor reversal, the DT03 series integrates a reversing box, allowing:

• Instant forward/reverse motor direction switching

• Compact assembly with minimal wiring

• Enhanced design efficiency for manufacturers

This functionality is critical in:

• Cordless drills (forward for drilling, reverse to withdraw)

• Screwdrivers (insert/remove screws)

• Impact wrenches (tighten/loosen bolts)

3. Full Dustproof Structure

Power tools often operate in harsh environments filled with debris, dust, or particulates. The DT03’s sealed housing prevents intrusion of:

• Fine dust

• Wood particles

• Concrete debris

• Garden waste

This significantly extends the lifespan of the switch, making it ideal for:

• Outdoor gardening tools

• On-site construction tools

• Workshop and woodworking equipment

4. Ergonomic Progressive Trigger

The DT03's progressive trigger design enables smooth acceleration and speed control. Benefits include:

• Better control at low speeds

• Gradual torque application

• Reduced startup jerk

• Comfortable, fatigue-free use

Its trigger force is calibrated for comfort and repeatability, ideal for long-duration work like assembly, drilling, or trimming.

5. Suitable for Brushed and Brushless DC Motors

Supporting both brushed and brushless systems, DT03 delivers versatility across tool generations. It serves:

• Brushed motors with direct contact switching

• BLDC systems with signal output for electronic controllers

This makes DT03 future-ready, bridging the transition from traditional motors to high-efficiency brushless tools.

6. Streamlined Tool Design for OEMs

With the reverse function, braking system, and trigger all in a single integrated unit, the DT03 helps manufacturers:

• Eliminate external switches or relays

• Reduce component count and PCB size

• Simplify tool design and assembly

• Improve tool durability with fewer failure points

Typical Applications

1. Cordless Drills

Cordless drills demand fine control over:

• Rotation speed

• Direction

• Braking after operation

The DT03 provides:

• Seamless forward/reverse toggle

• Immediate stop for hole placement accuracy

• Dustproofing for plaster, wood, and concrete dust

2. Cordless Screwdrivers

Speed and torque control are critical in electronics, assembly, and cabinetry. DT03 helps by:

• Allowing soft start to avoid overtightening

• Reversing direction for screw removal

• Providing consistent actuation for repeated cycles

3. Cordless Rotary Hammers

In concrete or masonry work, reliable braking and dustproofing are essential. DT03:

• Reduces spin-down delay

• Prevents internal wear from grit

• Simplifies forward/reverse changeover

4. Cordless Impact Wrenches

Designed for high torque applications, DT03 supports:

• Strong internal braking to prevent flywheel run-on

• Dust resistance in automotive or construction use

• Simple reverse action without external toggles

5. Cordless Garden Tools

Tools like trimmers, blowers, and pruners benefit from DT03’s:

• Environmental sealing

• Smooth trigger feel

• Low weight and compact design

Even when exposed to sap, dirt, and outdoor elements, DT03 performs reliably.

Benefits for Manufacturers

1. Reduced Component Integration

By embedding reversing and braking into the trigger unit, the DT03 reduces the need for:

• External electronic controls

• Wire harnesses and connectors

• Multiple PCB-mounted switches

2. Lower Assembly Cost

Fewer components and simplified wiring lead to:

• Faster assembly times

• Lower failure rates

• Simplified diagnostics and servicing

This is especially advantageous in mass production lines or automated assembly.

3. Customization Options

DT03 switches can be adapted for brand-specific requirements:

• Varying trigger lengths or shapes

• Modified reversing switch orientation

• Different contact materials for specialized loads

• Specific terminal designs or mounting formats

OEMs can collaborate with manufacturers for tailored solutions.

4. Reliability in Field Use

Thanks to:

• Braking that protects motors

• Dustproof structure that shields contacts

• Stable mechanical performance under shock and vibration

The DT03 contributes to higher customer satisfaction, fewer returns, and stronger tool brand reputation.

Frequently Asked Questions

Q1: What makes DT03 different from DT01 or DT02?

DT03 integrates all three core functions:

• Mechanical braking

• Dustproof sealing

• Reversing via an internal box

It is a more complete solution, especially suited for tools that need all-in-one control without external switches.

Q2: Can DT03 be used with BLDC motor controllers?

Yes. The DT03 is compatible with brushless DC tools. It can send signal outputs to an external BLDC driver while maintaining its physical switching, brake, and reverse functions.

Q3: Does the reversing function interfere with braking?

No. The DT03 is engineered so that the reversing mechanism and braking contact operate independently, ensuring smooth and safe transitions between motor directions.

Q4: What environments is DT03 rated for?

The dustproof housing is suitable for:

• Indoor and outdoor use

• Construction sites

• Workshops

• Light rain or spray conditions (with proper enclosure)

For water submersion or chemical environments, higher-spec sealing would be necessary.

Q5: How long does the switch last in practical use?

With a rated endurance of 100,000+ cycles, the DT03 outlasts the service life of many entry-level power tools. Longevity depends on application frequency, load, and environment.

Q6: Can I request a different reversing control position?

Yes. The reversing box mechanism can be positioned for:

• Left/right toggle

• Top/bottom slide

• Custom actuation shapes

This helps ensure compatibility with various handle or trigger housing shapes.

Summary

The DT03 Series DC Trigger Switch is a powerful, compact, and multifunctional solution for the next generation of cordless DC tools. With integrated brake, reverse, and dustproof construction, it combines the functions of several components into one switch—boosting performance, reliability, and design simplicity.

Ideal for a wide range of cordless applications—from rotary hammers to screwdrivers and garden tools—the DT03 helps manufacturers reduce costs while improving product quality. Its adaptability across brushed and brushless motor systems ensures its relevance for both current and future tool platforms.
