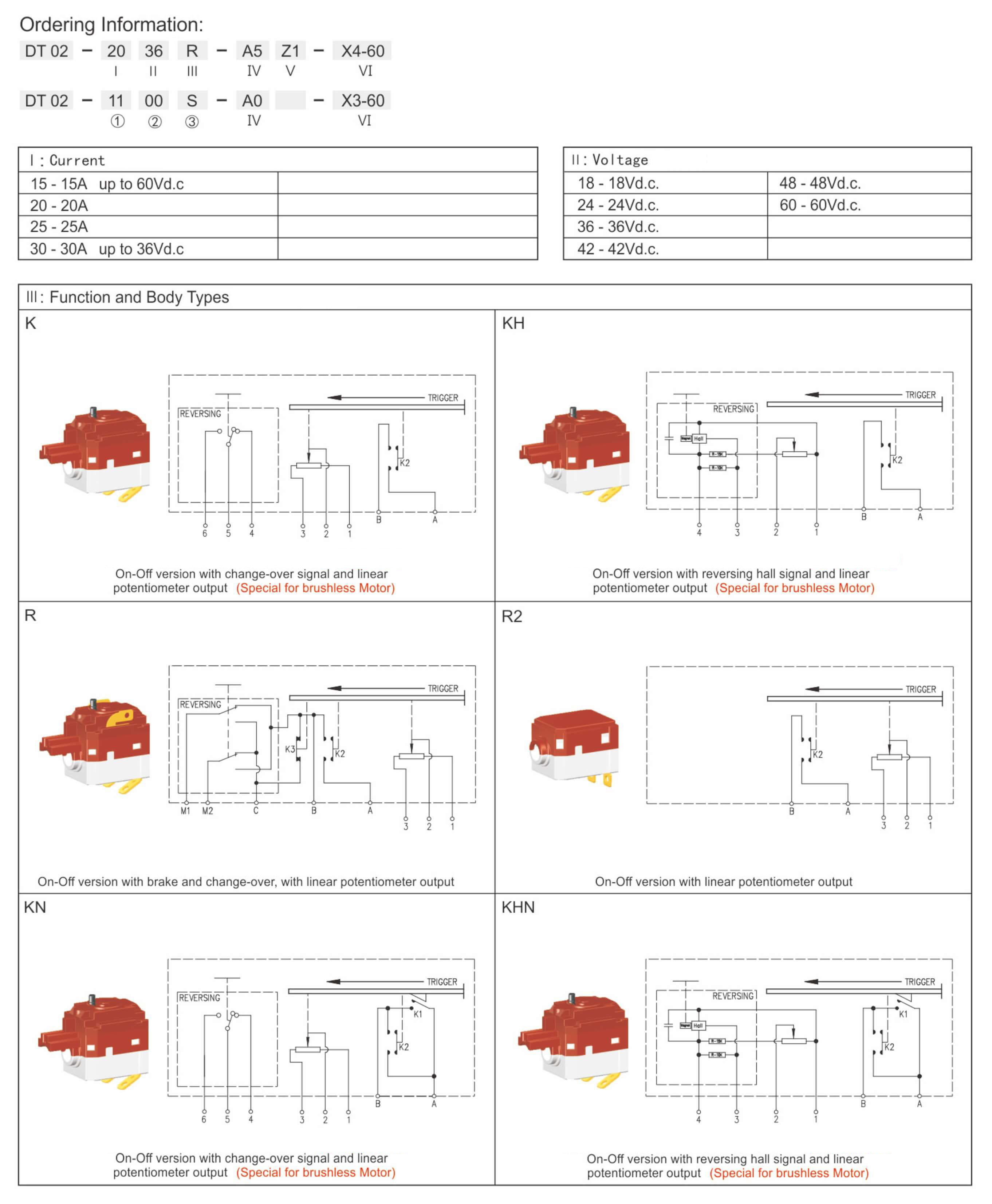

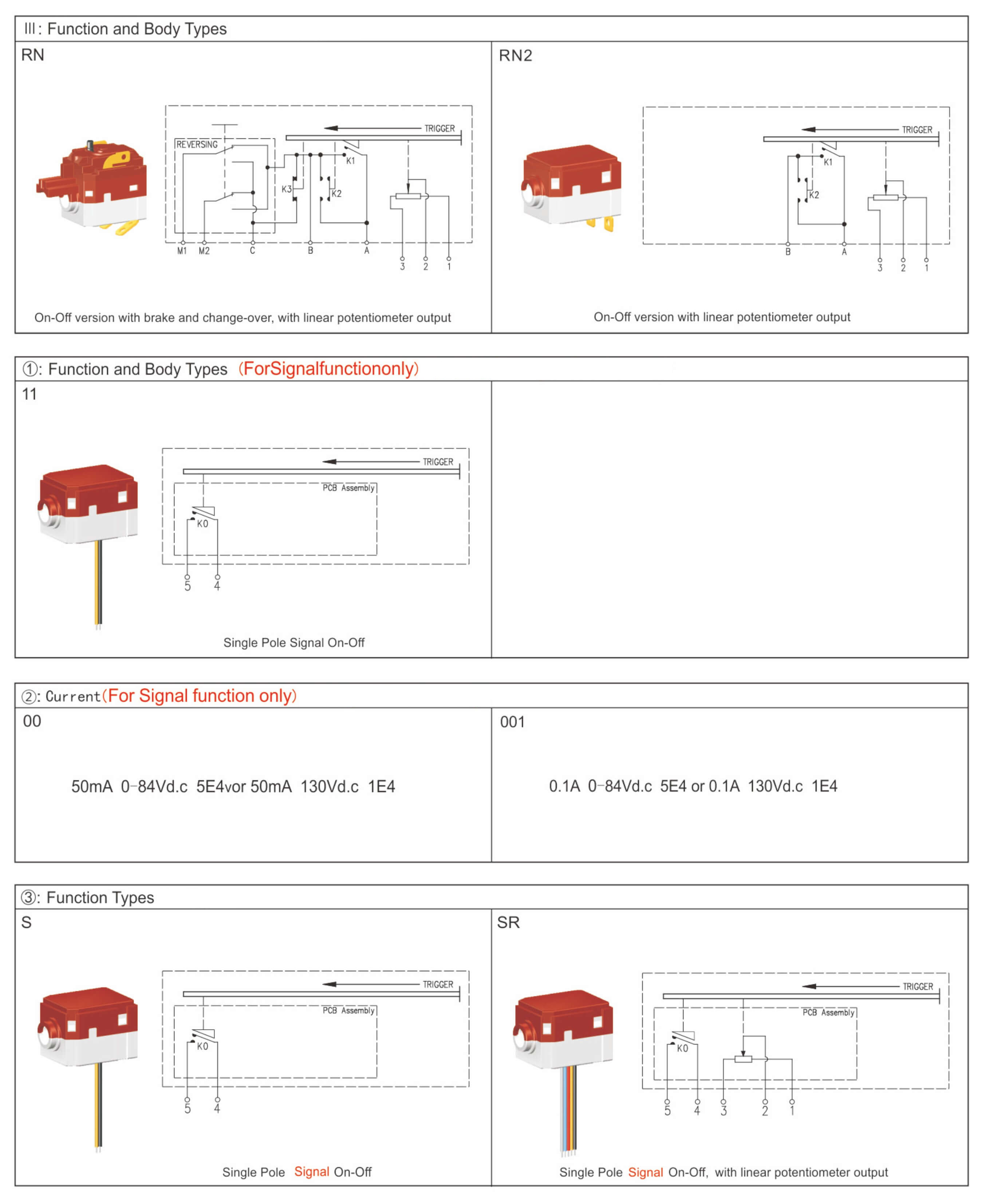

◆  The switches combine compact size, Optional with the function or accessor as follows:

→  On-off with linear potentiometer ouput

→  On-off with mechanical reversing and linear poteniometer ouput

→  On-off with reversing signal indication and linear potentiometer ouput (Special for DC brushless applications)

→  On-off with teversing hall signal and linear potentiometer ouput (Special for DC brushless applications)

→  Auxiliary wire or battery clamp

◆ The electronics in the switches had to be tested together with the corresponding appliances, so the switches are suitable for appliance of class II.

◆  Input side:

→  Solder terminal 4.2×0.8mm

◆  Output side:

→  Solder terminal 4.6×0.5mm

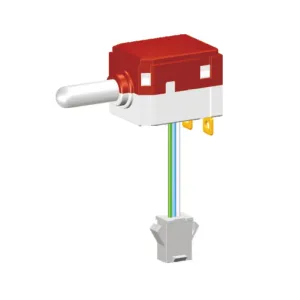

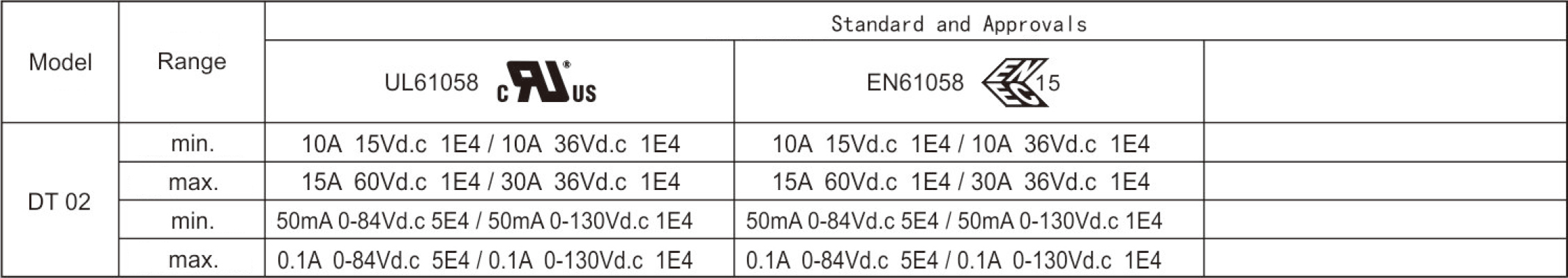

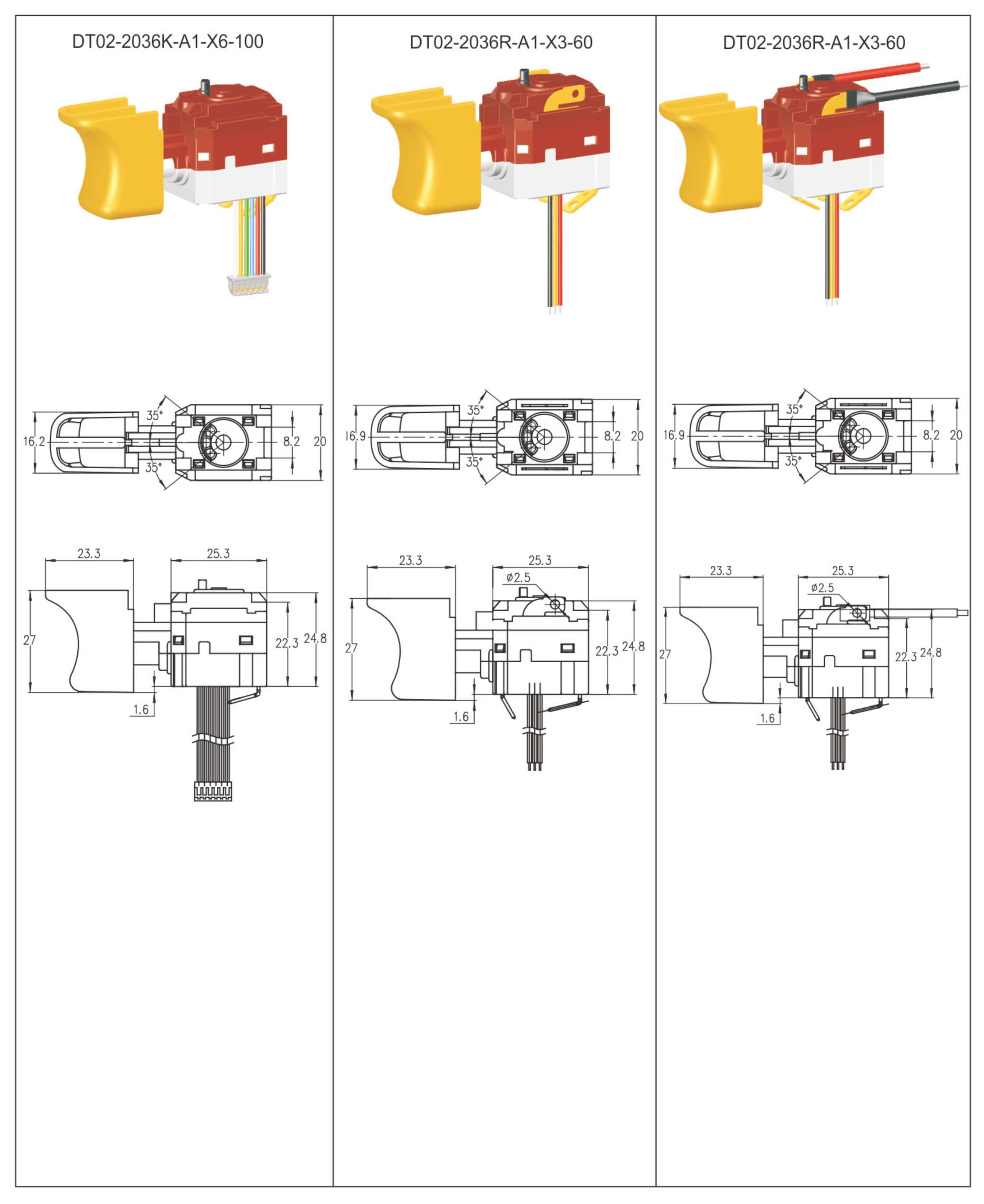

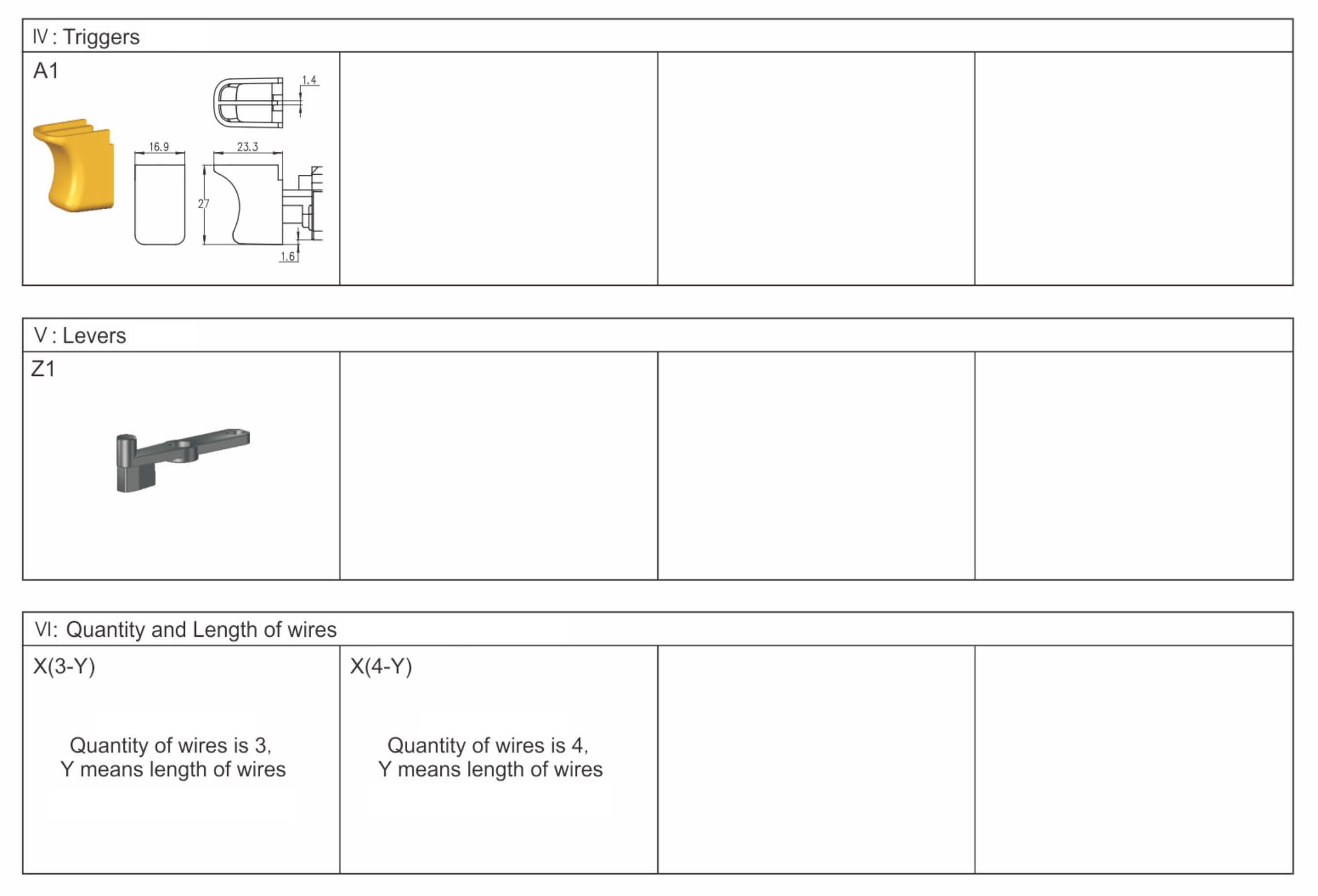

DT02 Series Power Tool Switch: Advanced DC Trigger Switch with Integrated Brake and Reversing Options

Product Introduction

The DT02 Series Power Tool Switch is an advanced, dustproof DC trigger switch designed specifically for cordless DC power tools and portable gardening tools. Developed for applications demanding reliable performance, compact structure, and flexible control functions, the DT02 offers enhanced features such as an integrated mechanical braking contact, and an optional internal reversing mechanism. These features make it ideal for a wide range of corded and cordless devices, including both brushed and brushless DC tools.

As cordless power tools continue to dominate the market due to their mobility and convenience, the DT02 series meets the challenge of combining compact mechanical design with electrical durability, safety, and signal control. Whether used in a high-torque impact wrench or a lightweight trimmer, the DT02 delivers reliable, long-lasting performance.

Technical Overview of DT02 Series

Key Features of DT02 Series

1. Integrated Mechanical Brake Contact

The DT02 switch is equipped with a dedicated mechanical brake contact that instantly interrupts the motor circuit when the trigger is released. This feature significantly reduces coasting and improves control precision, particularly valuable in tools where stopping power is critical:

• Rotary hammers

• Electric drills

• High-speed screwdrivers

The mechanical brake also enhances user safety and improves job efficiency by shortening the time between motor stop and next task engagement.

2. Optional Inner Reversing Mechanism

The DT02 series offers an internal reversing contact system, allowing the user to toggle the motor direction without needing external wiring or switches. This function supports:

• Forward/Reverse motor rotation

• Simplified assembly for OEMs

• Compact layout in tools with tight space constraints

This is especially valuable in:

• Cordless impact wrenches (tighten/loosen)

• Cordless drills (drill/retract)

• Screwdrivers (drive/extract)

3. Fully Dustproof Construction

A key challenge in outdoor and construction tools is dust infiltration, which leads to premature switch failure. The DT02 is designed with an enclosed dustproof structure, protecting the internal contacts and mechanical parts from:

• Sawdust

• Cement powder

• Sand and debris

• Plant residue

This durability makes it an ideal solution for tools used in gardening, carpentry, masonry, and DIY projects.

4. Smooth Trigger Travel and Ergonomic Operation

The DT02’s actuation is carefully tuned for gradual travel, giving users precise control over tool operation. Whether starting slow or applying full torque, the progressive trigger stroke allows for:

• Smoother motor response

• Reduced accidental overspeeding

• Enhanced tactile feedback

The trigger design also ensures minimal hand fatigue, even with continuous use during extended working hours.

5. Dual Compatibility: Brushed and Brushless DC Motors

The DT02 is compatible with both traditional brushed DC motors and newer brushless DC motors (BLDC), ensuring broad applicability across various tool lines. Its internal contact structure is robust enough to handle high inrush currents typical of brushed systems, while also being low-noise and precise enough for digital signal control in BLDC systems.

Application Scenarios

1. Cordless Drills

Cordless drills require direction control, braking, and fine speed adjustment. The DT02 enables:

• Reversing for drill/retract functions

• Quick stop via integrated brake

• Compact trigger fitting into slim tool housings

2. Cordless Screwdrivers

In assembly work or electronics repair, precision is key. The DT02 delivers:

• Reliable contact under low load

• Consistent trigger response for short bursts

• Low-profile design for lightweight screwdrivers

3. Cordless Rotary Hammers

Used in heavy-duty applications, rotary hammers demand:

• High-current tolerance

• Brake response to halt motor inertia

• Durable dustproofing for use in concrete drilling

The DT02 meets all these needs with minimal maintenance and long life.

4. Cordless Impact Wrenches

Torque-sensitive tasks in automotive and construction benefit from:

• Reversing to loosen bolts

• Brake to prevent overtightening

• Ergonomic trigger for high-frequency use

The DT02 ensures precise control even under shock and vibration.

5. Cordless Grass Trimmers and Blowers

Outdoor tools must withstand exposure to moisture, dirt, and frequent activation. The DT02 provides:

• Environmental sealing

• Quick start/stop control

• Compact integration into molded plastic handles

6. Other Compatible Tools

The DT02 series is also suitable for:

• Cordless polishers

• Electric pruners

• Mini saws

• Sprayers

Its versatile control architecture makes it the preferred choice for any tool requiring a DC trigger with braking or reversing functionality.

Advantages for Manufacturers

1. Simplified Tool Wiring

With an integrated reversing mechanism, the DT02 reduces the need for external reverse switches or additional PCB logic. This lowers:

• Internal wiring complexity

• Tool assembly time

• Production cost

2. Consistent Trigger Performance

With a factory-calibrated actuation force and stroke, every DT02 switch delivers identical tactile response, ensuring uniformity across tools in a product line—key for customer satisfaction and brand consistency.

3. Safety and Compliance

The mechanical brake and dustproofing contribute to improved tool safety standards. The flame-retardant housing also supports certification readiness for CE, UL, and other regional safety requirements.

4. Durable for Harsh Worksites

The switch housing and contact design are tested to endure vibrations, shocks, and environmental stress typically seen in job site usage. This leads to:

• Fewer returns due to failure

• Extended service intervals

• Higher end-user trust

Frequently Asked Questions

Q1: Is the DT02 suitable for brushless motors?

Yes. The DT02 is compatible with BLDC motors, especially in designs where the switch acts as the signal trigger while the main power is controlled by the driver board.

Q2: Does it support reversing and braking simultaneously?

Yes. The DT02 can be equipped with both reverse and brake functions in the same switch unit, offering multifunctional performance in a compact form.

Q3: Can the switch be customized for different tools?

Absolutely. OEMs can request:

• Custom trigger force or stroke

• Alternate contact ratings

• Color-coded handles

• Modified mounting configurations

Q4: How is braking achieved?

A dedicated internal contact shorts the motor terminals upon trigger release, providing mechanical braking via motor back EMF dissipation. This is faster and more controlled than natural motor deceleration.

Q5: What is the service life of the DT02?

Under normal tool loads, the DT02 exceeds 100,000 operations, depending on contact configuration and application frequency.

Q6: Can the reversing mechanism be disabled?

Yes. For tools that do not require reverse function, the internal reversing mechanism can be omitted, allowing a simplified DT02 version.

Conclusion

The DT02 Series DC Trigger Switch is engineered for the next generation of cordless and portable DC power tools. With its brake and reversing integration, dustproof protection, and compatibility with both brushed and brushless motors, it empowers tool manufacturers to deliver smarter, safer, and more durable products.

From cordless drills to garden tools, the DT02 is a compact powerhouse of functionality—streamlining tool design, reducing internal wiring, and enabling advanced control systems.
