Micro Switch MS01 Series MS01-A01-U: A Comprehensive Guide

Introduction

The Micro Switch MS01-A01-U from the MS01 Series is an advanced electrical component designed for a wide range of applications requiring precision, reliability, and long service life. As industries continue to evolve with smarter and more compact technologies, the demand for miniature, high-performance switches like the MS01-A01-U continues to grow. With its exceptional mechanical and electrical characteristics, it has earned a spot as a key element in home appliances, industrial systems, medical devices, automotive electronics, and more.

This article explores the detailed product features, suitable applications, technical attributes, and answers common concerns regarding the use and installation of the MS01-A01-U. Whether you're an engineer, system designer, or procurement professional, this comprehensive overview is tailored to help you understand the advantages and proper usage of this micro switch model.

Product Overview

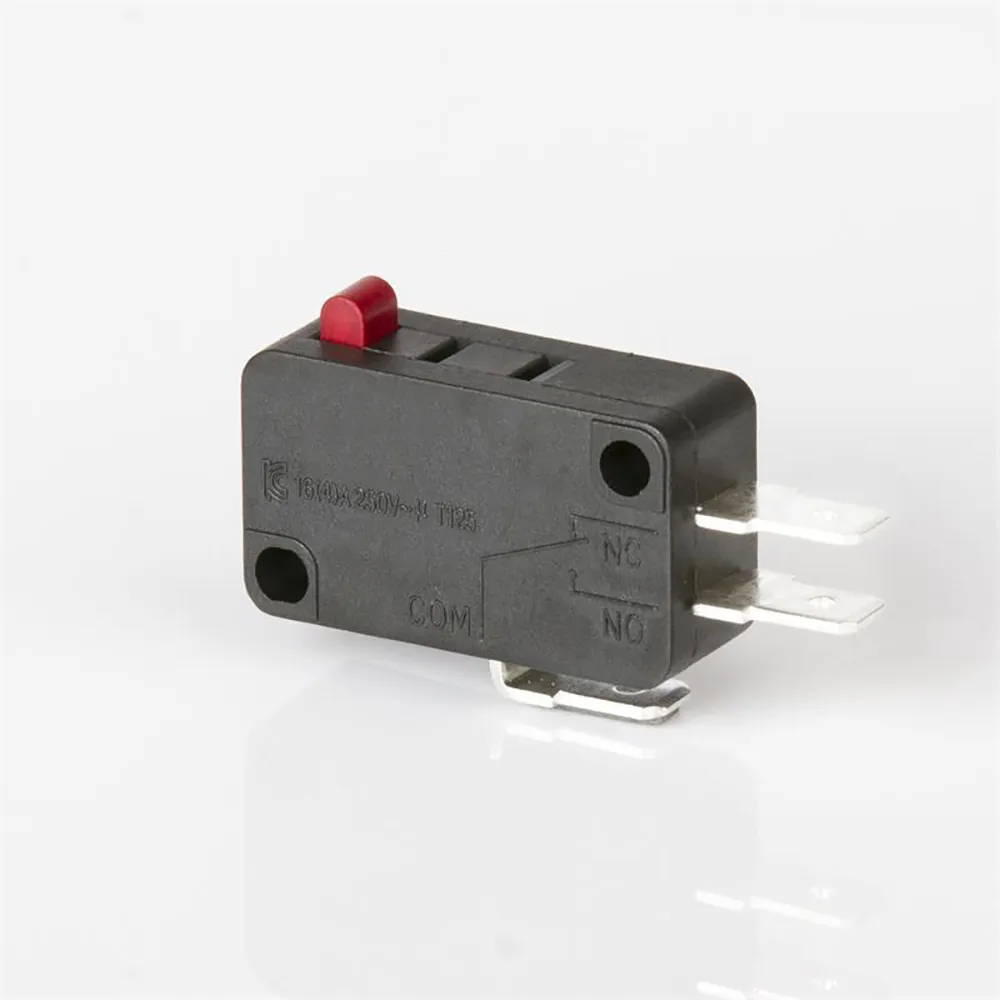

The MS01-A01-U is a part of a specialized micro switch series engineered for high reliability and sensitivity. Micro switches like this are often deployed where quick response and consistent switching accuracy are crucial. Its versatile and compact design allows it to be integrated into complex systems without compromising on performance.

One of the main attributes of the MS01-A01-U is its adaptability to various operating environments. Users are encouraged to choose the model variant that suits specific needs based on parameters such as current rating, operating load, actuator type, and ambient temperature.

In environments with high moisture levels, dust, or pollutants, sealed versions of the switch are highly recommended to ensure uninterrupted performance and longevity. In addition, users should avoid applying oil to the button or actuation area, as it can result in operational failure or even electrical damage. It is equally important to mount the switch on a flat surface using a flat washer or spring washer to avoid mechanical stress or deformation that could impair functionality.

For storage, the MS01-A01-U should be kept in dry, ventilated areas away from harmful substances. The temperature should remain within the 0°C to 55°C range, and the product should not be stacked more than five layers high to maintain physical integrity.

Applications of the MS01-A01-U Micro Switch

The MS01-A01-U micro switch is a highly adaptable component with wide-ranging uses across numerous sectors:

1. Consumer Electronics
   It is commonly found in home appliances such as washing machines, microwaves, coffee makers, and refrigerators. These switches control features like door interlocks, power control, and user interfaces.

2. Medical Devices
   Due to its precise actuation and long life, it is suitable for use in hospital equipment like infusion pumps, patient monitors, and diagnostic devices, where reliable response is essential.

3. Military and Aerospace Systems
   In defense and aerospace industries, where environmental reliability is critical, the MS01-A01-U ensures consistent performance even in demanding conditions.

4. Industrial Automation
   Micro switches are embedded in robotic arms, conveyor systems, and control panels to detect presence, motion, or end positions.

5. Automotive Electronics
   From detecting door closures to managing seat position sensors and brake pedal actuation, this micro switch plays a vital role in modern automotive systems.

6. Telecommunication Equipment
   Used in the operation of base station equipment and network devices, the MS01-A01-U supports signal and power switching with excellent contact reliability.

7. Electric Power Tools
   Power drills, grinders, and saws often use micro switches for trigger controls and safety interlocks due to their durability under frequent use.

Technical Characteristics

The MS01-A01-U stands out due to its strong technical specifications that meet rigorous industrial standards.

The switch offers a variety of rated currents depending on the selected version: 5(2)A, 10A, 16(3)A, or 21(8)A at 250VAC, providing flexibility for different electrical loads. Its contact resistance is impressively low at a maximum of 30 milliohms in the initial state, ensuring minimal voltage drop and efficient conductivity.

Insulation resistance exceeds 100 megaohms when tested at 500VDC, which means the switch maintains high integrity even under high voltage differentials. In safety tests, it withstands voltages of 1000V for one minute between non-connected terminals and 3000V between the terminals and the metallic casing, ensuring user safety and preventing breakdown.

From a durability standpoint, the switch is capable of over 50,000 electrical cycles and over 1,000,000 mechanical cycles. It supports a wide operating temperature range from -25°C to 125°C, making it suitable for both consumer and industrial-grade environments.

The switch’s performance under vibration is also notable. It endures frequencies from 10 to 55Hz with an amplitude of 1.5mm across three axes for one hour, allowing use in mobile or high-movement systems.

Soldering reliability is ensured by solderability specifications, requiring that over 80% of the tin-immersed surface be covered. The device supports both dip and manual soldering: 260±5°C for 5±1 seconds and 300±5°C for 2 to 3 seconds, respectively.

Certified under multiple safety agencies including UL, CSA, VDE, ENEC, TUV, CE, KC, and CQC, the MS01-A01-U meets global compliance and reliability standards.

Installation and Operational Guidance

For optimal performance, the MS01-A01-U must be installed properly. Uneven surfaces or loose mounting can impair the actuation precision. It is advisable to use spring or flat washers when securing the switch to distribute mechanical pressure evenly.

Avoid contaminating the button area with oil, which can degrade the switch’s internal components and reduce its lifespan. During soldering, adhere to recommended temperatures and immersion durations to prevent thermal damage.

When the switch is not in use or in storage, keep it in sealed containers in controlled environments. Protect it from direct exposure to moisture, chemicals, or mechanical impacts.

Common Questions and Answers

Q1: Can the MS01-A01-U handle high-load applications?
Yes, the MS01-A01-U supports a range of current ratings up to 21(8)A at 250VAC. However, users should ensure the switch version matches the specific load requirement of their application.

Q2: Is the MS01-A01-U suitable for outdoor use?
While the standard model is not waterproof, sealed variants are available and recommended for use in high-humidity or outdoor environments.

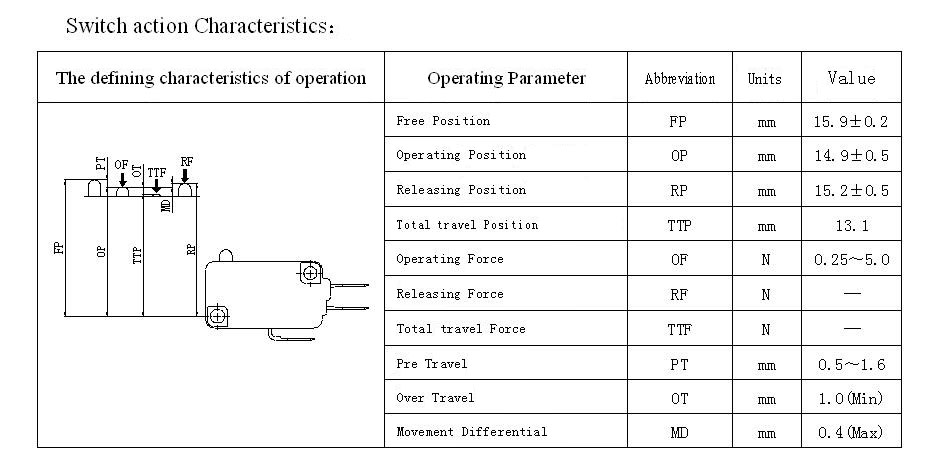

Q3: What type of actuator does this model use?

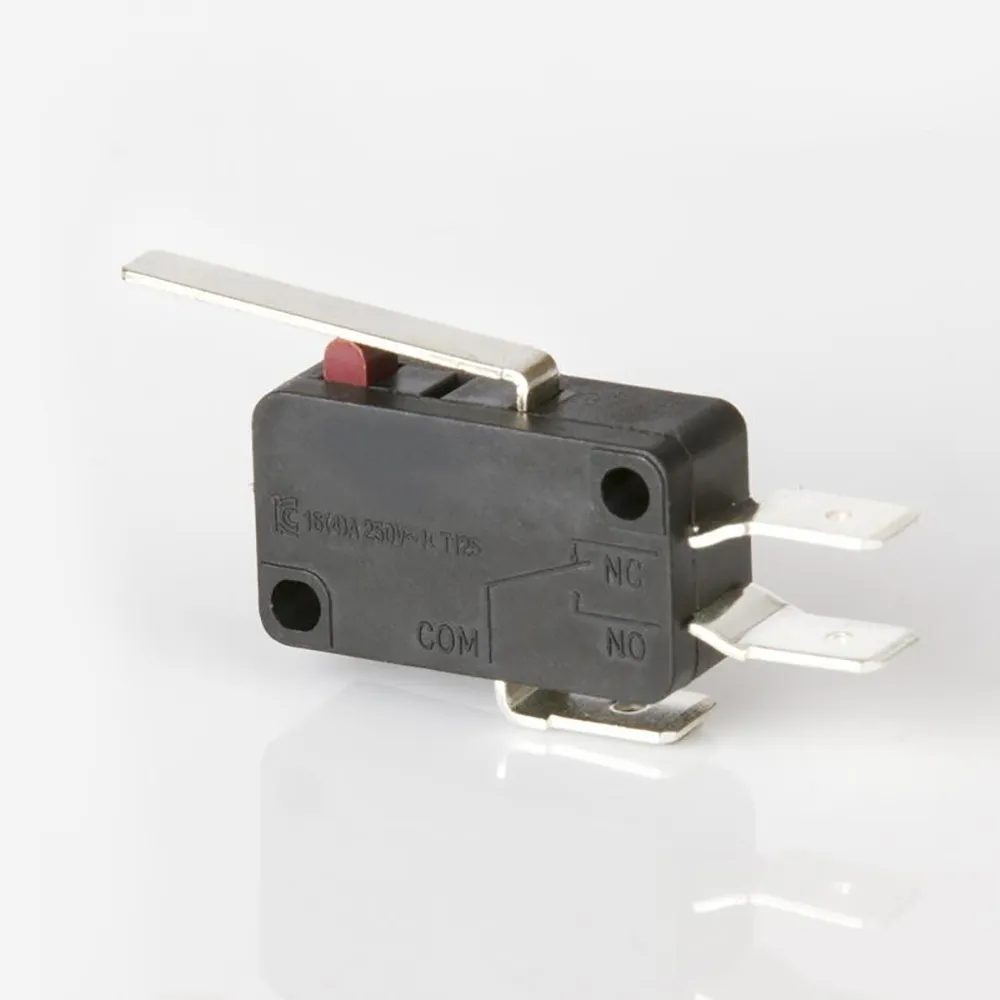

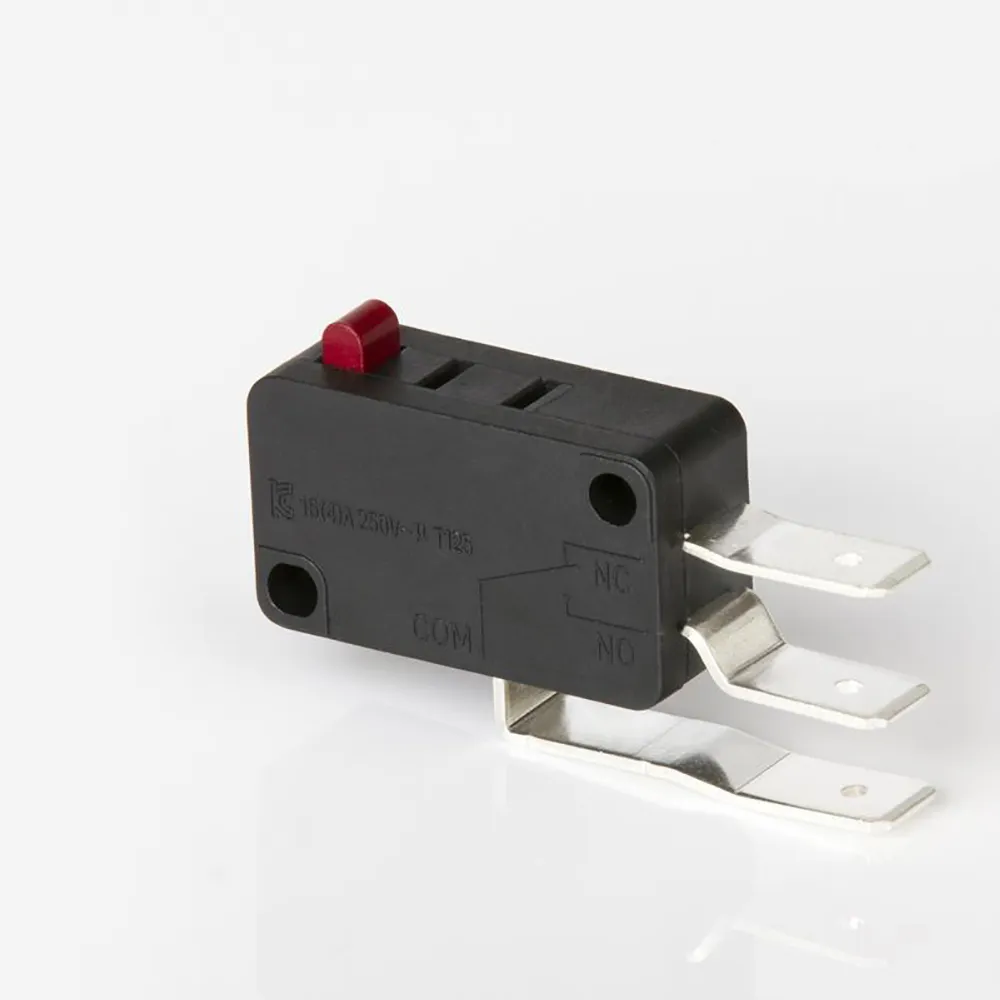

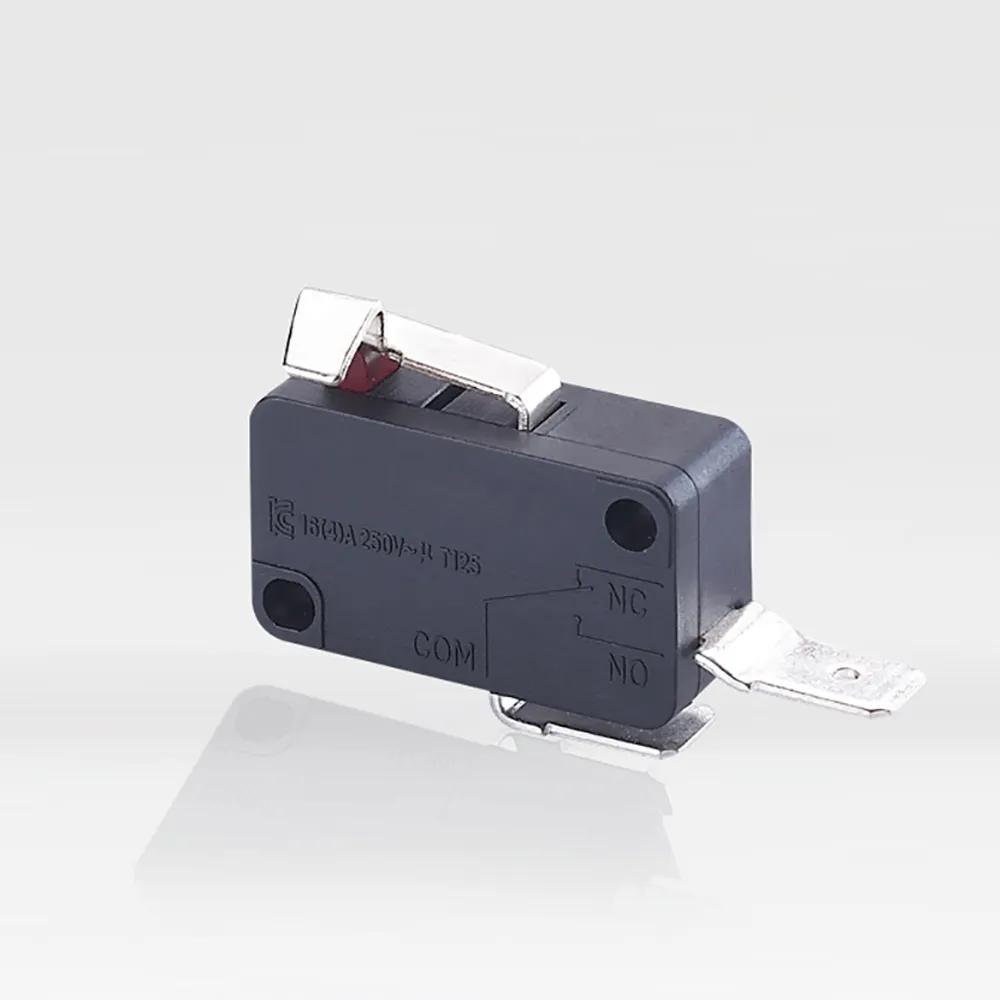

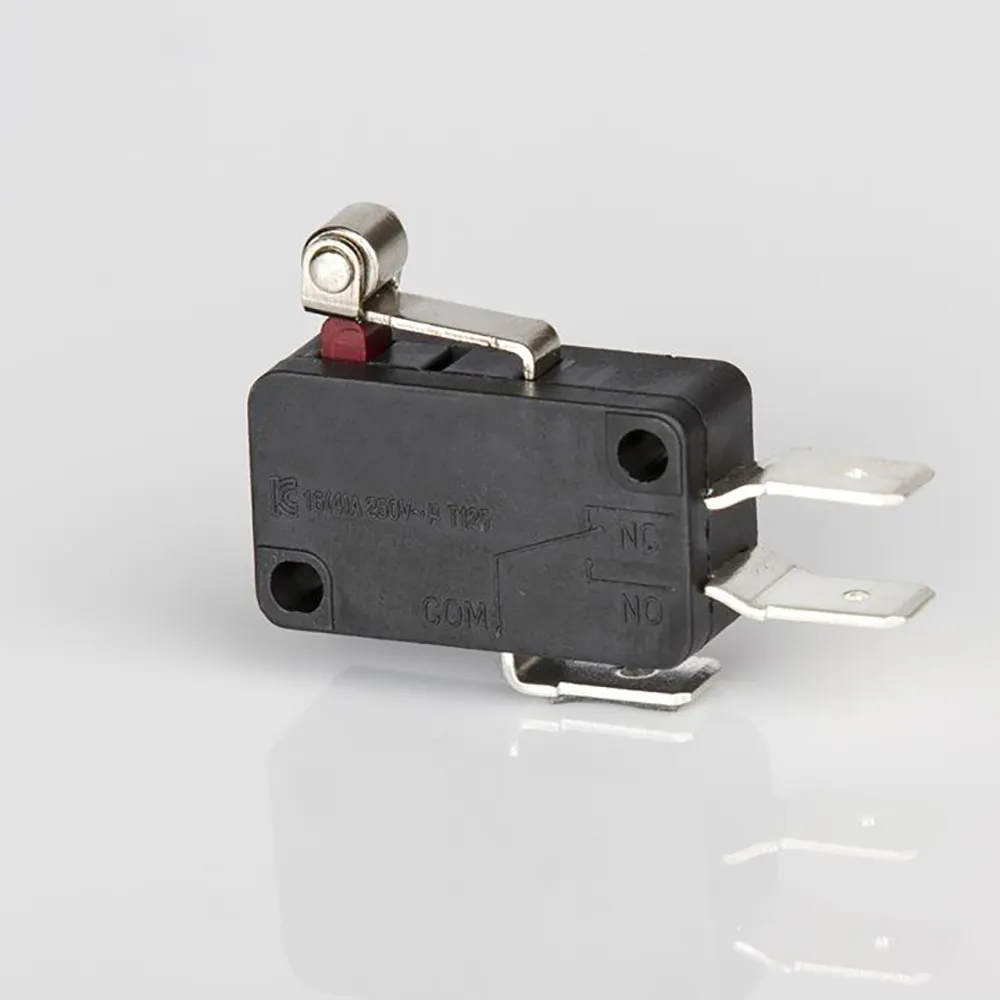

The MS01-A01-U can be customized with various actuator styles, such as pin plunger, roller lever, or simulated roller lever, depending on the mechanical interface needed.

Q4: How often should the switch be inspected or replaced?
Routine inspections should be conducted based on usage intensity. Though designed for up to a million mechanical cycles, harsh conditions may necessitate more frequent checks.

Q5: Can the switch be integrated into automated soldering systems?
Yes. The device supports both dip soldering and hand soldering with defined temperature and time limits, making it compatible with mass production setups.

Q6: What happens if I exceed the recommended soldering temperature or time?
Doing so may deform the housing, damage internal contacts, or degrade the performance of the switch. Always follow manufacturer guidelines closely.

Q7: What safety standards does the MS01-A01-U meet?
It is approved by global certifications including UL (USA), CSA (Canada), VDE and ENEC (Europe), TUV (Germany), CE (European Union), KC (Korea), and CQC (China), ensuring it meets international safety and quality benchmarks.

Conclusion

The MS01-A01-U from the Micro Switch MS01 Series is a versatile, reliable, and high-performing component built to serve a wide spectrum of industries. Its compact design, customizable options, and impressive durability make it a standout choice for professionals seeking precise switching solutions.

Whether you're integrating it into a next-generation smart appliance, an automotive control system, or a sensitive medical device, the MS01-A01-U is engineered to meet your expectations. With proper selection, handling, and maintenance, it will deliver long-term operational excellence even under demanding conditions.
