YBM series prefabricated substation is a compact distribution device including HV switchgear, distribution transformer, Switchgear, electric energy metrological device and reactive power compensator, all devices are packaged in one or several cubical units, which are wired by correct logic electrically schemes. It is suitable for a three phase AC system with rated voltage of 10/0.4kV.

if need any qualification or test report,please email to 705714886@qq.com

Inquire Now →

metal push button 16mm

Inquire Now →

Description

Parameter

Ordering Information

Description

Parameter

Technical Data

No.	Content	H.T Side	Transformer Side	L.T Side
1	Rated Capacity	—	50-3150kVA	—
2	Rated Voltage	10(35) kV	10(35) 0.4kV	0.4kV
3	Rated Current	400-600A	—	400-6300A
4	Rated Short-circuit Breaking Current	≥20kA	—	≥30kA
5	Rated Short Circuit Making Current	50kA	—	—
6	Rated Thermal Stability Current	≥20/4kA/S	—	≥30/1kA/S
7	Power Frequency Withstand voltage in 1 min	Earth:42(95kV Fracture:48(110) kV	—	1.89
8	Lightning impulse Withstand Voltage	Earth:75(185) kV Fracture:85(215) kV	—	—
9	Degree of Protection	IP33D
10	Noise Level	≤65DB (dry type transformer) ≤65DB (dry type transformer)

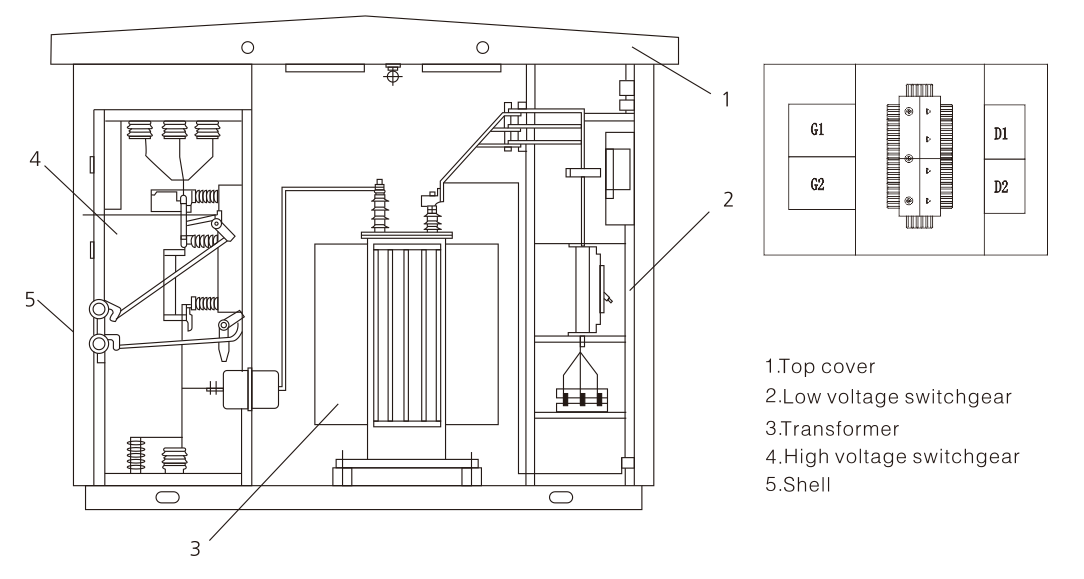

Schematic diagram of structure
